MSC3060 Mobile Energy Storage and Charging Machine

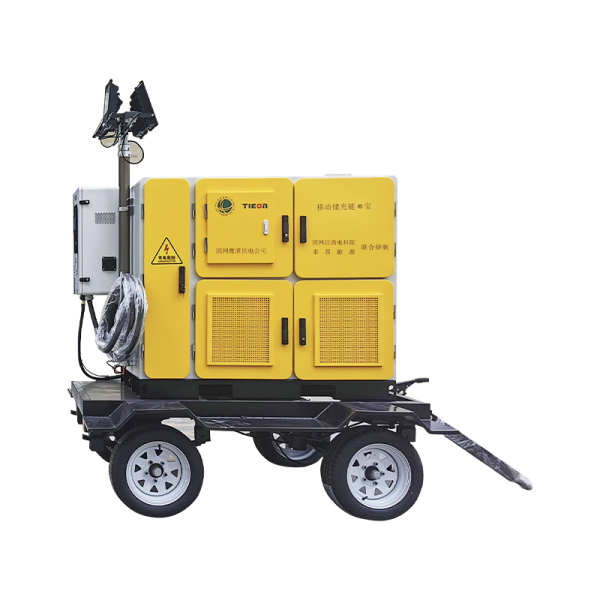

MSC3060 mobile energy storage and charging machine consists of a 60kW bidirectional energy storage inverter, a 64.5kWh lithium iron phosphate battery pack, a 400W emergency lighting lamp, and a 40kW DC charging pile. It can be mounted on an outdoor mobile storage cart, installed on the ground, or transported by a pickup truck.
Share to:
Mobile charging station
In scenarios where electric vehicles gather, such as holidays, tourist attractions, large-scale events, MSC3060 can be added to alleviate the shortage of charging piles. When an electric vehicle runs out of power, it can be used to charge.
Transformer line and circuit overload capacity increase
When the transformer or low-voltage line is overloaded, causing the transformer or line to burn out or break, MSC3060 can effectively solve the problem with high utilization rate and low investment.
Backup power supply
Power supply interruption in important meetings and other occasions may cause mass or political incidents. MSC3060 can be used as a backup power supply to ensure power supply to important loads, and achieve non-stop switching with a switching time of less than 20ms.
Emergency power supply / temporary power supply
When the power grid is abnormal or outdoor work requires temporary power supply as an independent power bank power supply.The advantages of this machine are small size, convenient transportation, low noise, less nuisance to residents, and environmental protection.
PV consumption
Overload Management
|
AC input |
Rated power | 60kW |
| Rated voltage | 230/400y | |
| Operating voltage range | 161~264V (phase voltage) | |
| Rated grid frequency | 50Hz | |
| Input format | Three-phase five-wire system | |
| Voltage harmonic distortion rate | ≤3% | |
|
Battery |
Battery Type | Lithium iron phosphate battery |
| Battery rated capacity | 64.5kWh | |
| Battery capacity | 120AH | |
| Battery nominal voltage | 537.6V | |
| Battery voltage range | 470.4V~596.4V | |
| Recharging current | 1C | |
| Discharge current | 1C | |
|
Charging pile |
Maximum power | 40kW |
| Voltage range | 200-1000VDC | |
| Standard | Meet the national standards, State Grid, Southern Grid, and the standards of various provinces and cities regarding electric vehicle charging devices. Compatible with 2011/2015 national standards. | |
| Billing method | Scan code, swipe card, etc. | |
| Environ-ment | Operating temperature range | -20~+50℃(derating above 45℃) |
| Operating humidity range | 0～95%(no condensation) | |
| Maximum operating altitude | 2000m | |
|
System |
Intelligent temperature control | Intelligent air cooling |
| Communication interface | RS485, Ethernet | |
| Communication protocol | Standard: Modbus RTU, Modbus TCP | |
| Protection level | P54 | |
| Weight | 1300KG | |
| Cabinet size W*D*H | W1500*D1000*H13 00 | |
| Local monitoring | 7-inch touch screen | |
| Communications | 4G wireless communication | |
| Remote monitoring | Remote cloud monitoring platform eVA |
