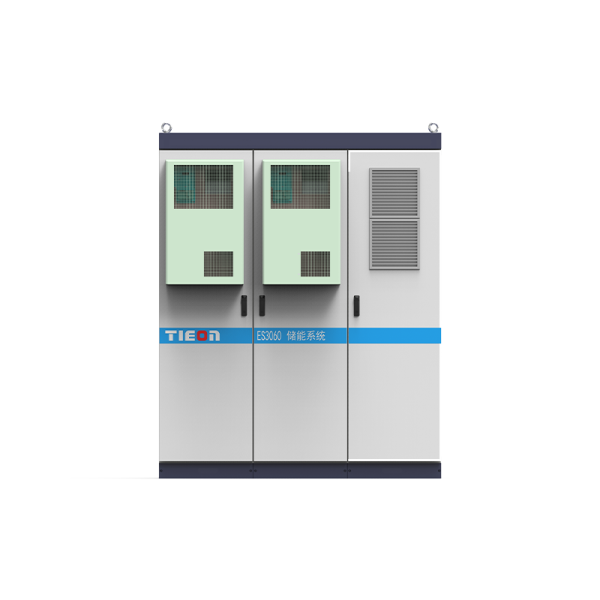

3060ESS
3060 Energy Storage System integrates a lithium iron phosphate battery system, an energy storage inverter, an energy storage monitoring device, industrial air conditioning, and a seven-fluoropropane gas fire suppression system into one unit. It connects to a 380V distribution network using a parallel T-connection method. It can be used for peak shaving and valley filling in industrial and commercial settings, as well as voltage stabilization and overload management in power distribution areas, and for local photovoltaic energy consumption.
Share to:
High integration
3060 ESS integrates core components such as PCS, lithium batteries, fire protection systems, air conditioning, and microgrid controllers. The overall design is unified and delivered as a complete package, making it convenient for installation, transportation, and maintenance.。
Cost-Effective
Precise temperature control at the cell level, intelligent charge and discharge management, extended battery cycle life, and a system conversion efficiency of over 89%.
Reliability
The battery features online monitoring with a multi-level linked protection design, an automatic seven-fluoropropane fire suppression system, multi-point monitoring and early warning, and rapid fire extinguishing capabilities.
Fully featured
Peak Load Shifting, PV Consumption,Overload Management and Backup Power Supply.
Rapid expansion
Using a standard outdoor module design, it allows for the parallel connection of multiple units to expand the energy storage system’s capacity.
Intelligent Management

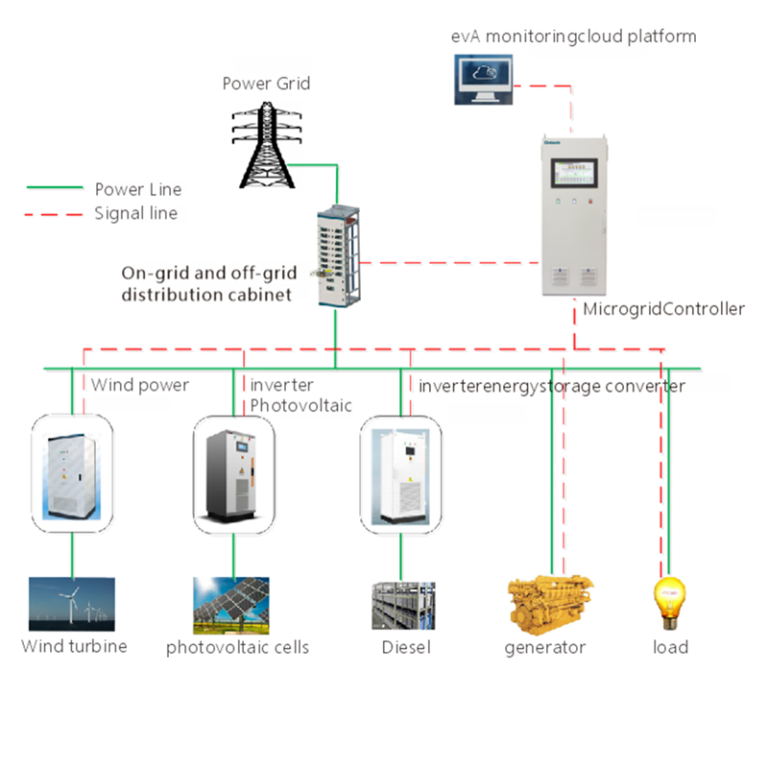

Incorporates a local microgrid controller for unattended intelligent operation.
| Rated AC power | 100kW |
| Wiring | Three-phase three-wire，3P+PE |
| AC overload capability | 110kW |
| Allowable grid voltage | 380/400（-15%～10%）Vac |
| Allowed grid frequency | 50/60（-2.5～2.5）Hz |
| Total current harmonic distortion rate | ≤ 3% |
| Power factor | -1～1 |
| Battery parameters | |
| Cell type | LFP 280Ah |
| Battery system configuration | 1P224S |
| Rated voltage | 716.8V |
| Battery voltage range | 627.2～795.2V |
| Power | 200kWh |
| System parameters | |
| Noise | < 70dB |
| Protection level | 1P54 |
| Allowable ambient temperature | -30~55℃（derate above 50℃） |
| Cooling method | 627.2～795.2V |
| Allowed relative humidity | 0~95% (no condensation) |
| Firefighting | Heptafluoropropane gas fire protection |
| Cycles | ≥6000 times |
| Charge and discharge rate | ≤0.5C |
| Cabinet size | Width 1800*Depth 1000*Height 2200 (mm) |
| Allowed altitude | 3000m (derating for distances greater than 2000m) |
| Cabinet weight | 2.5t |
| Maximum system efficiency | 89% |
| Communication parameters | |
| Communication Interface | RS 485, Ethernet |
| Protocol | ModbusTCP/RTU |
